Ancestral character reconstruction.

Marginal reconstruction of the ancestral character states.

Usage

ancestral.pml(object, type = "marginal", ...)

# S3 method for ancestral
as.phyDat(x, ...)

ancestral.pars(tree, data, type = c("MPR", "ACCTRAN", "POSTORDER"),
  cost = NULL, ...)

pace(tree, data, type = c("MPR", "ACCTRAN", "POSTORDER"), cost = NULL, ...)

Arguments

object: an object of class pml
type: method used to assign characters to internal nodes, see details.
...: Further arguments passed to or from other methods.
x: an object of class ancestral
tree: a tree, i.e. an object of class pml
data: an object of class phyDat
cost: A cost matrix for the transitions between two states.

Value

An object of class ancestral. This is a list containing the tree with node labels, the original alignment as an phyDat object, a data.frame containing the probabilities belonging to a state for all (internal nodes) and the most likely state.

Details

The argument "type" defines the criterion to assign the internal nodes. For ancestral.pml so far "ml and marginal (empirical) "bayes" and for ancestral.pars "MPR" and "ACCTRAN" are possible.

The function return a list containing the tree with node labels, the original alignment as an phyDat object, a data.frame containing the probabilities belonging to a state for all (internal nodes) and the most likely state. For parsimony and nucleotide data the most likely state might be ambiguous. For ML this is very unlikely to be the case.

If the input tree does not contain unique node labels the function ape::MakeNodeLabel is used to create them.

With parsimony reconstruction one has to keep in mind that there will be often no unique solution.

The functions use the node labels of the provided tree (also if part of the pml object) if these are unique. Otherwise the function ape::MakeNodeLabel is used to create them.

For further details see vignette("Ancestral").

References

Felsenstein, J. (2004). Inferring Phylogenies. Sinauer Associates, Sunderland.

Swofford, D.L., Maddison, W.P. (1987) Reconstructing ancestral character states under Wagner parsimony. Math. Biosci. 87: 199--229

Yang, Z. (2006). Computational Molecular evolution. Oxford University Press, Oxford.

Author

Klaus Schliep klaus.schliep@gmail.com

Examples


example(NJ)
#>
#> NJ> data(Laurasiatherian)
#>
#> NJ> dm <- dist.ml(Laurasiatherian)
#>
#> NJ> tree <- NJ(dm)
#>
#> NJ> plot(tree)

# generate node labels to ensure plotting will work
tree <- makeNodeLabel(tree)
fit <- pml(tree, Laurasiatherian)
anc.ml <- ancestral.pml(fit, type = "ml")
anc.p <- ancestral.pars(tree, Laurasiatherian)

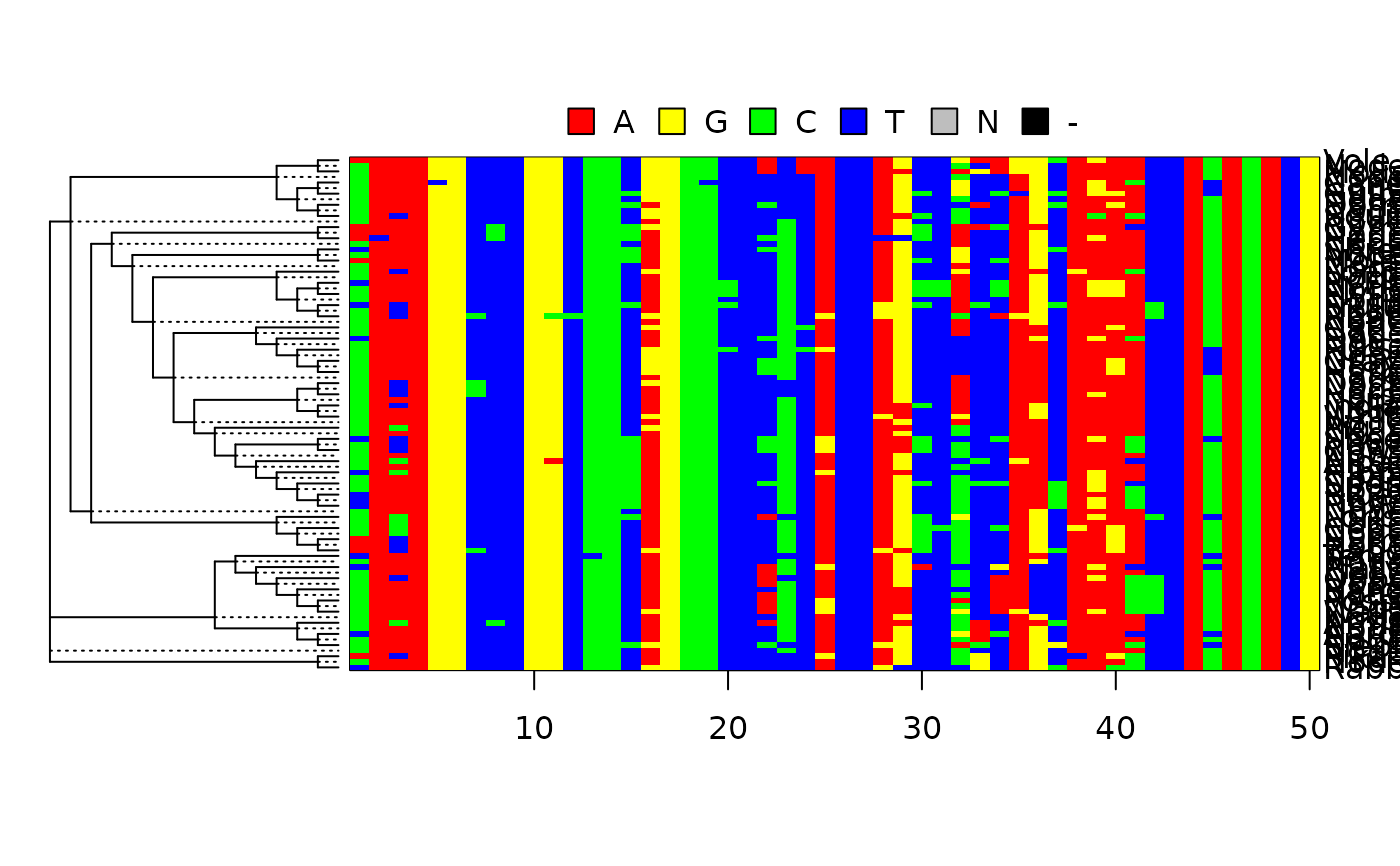

# plot ancestral sequences at the root
plotSeqLogo( anc.ml, 48, 1, 20)
#> Scale for x is already present.
#> Adding another scale for x, which will replace the existing scale.

plotSeqLogo( anc.p, 48, 1, 20)
#> Scale for x is already present.
#> Adding another scale for x, which will replace the existing scale.

# plot the first character
plotAnc(anc.ml)

# plot the third character
plotAnc(anc.ml, 3)
